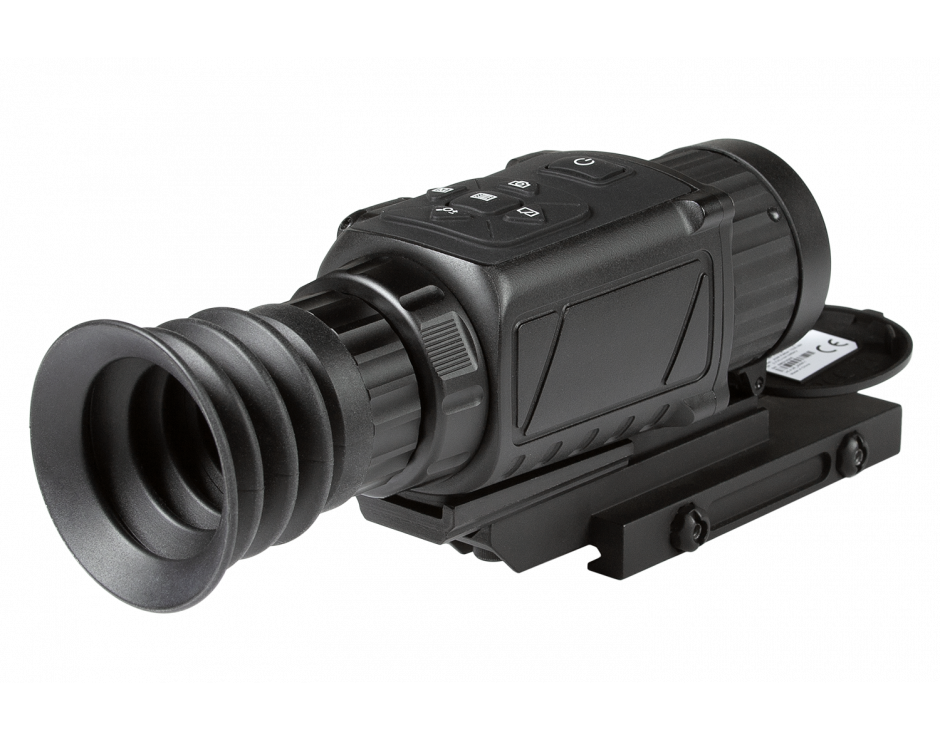

AGM Rattler TS35-384 Compact Medium Range Thermal Imaging Scope 384x288 (50 Hz), 35 mm lens

$2,495.00 $2,999.00

Free Shipping To Lower 48 USA
Limited Stock On Hand. Order Now Before They’re Gone!
Lowest Price Guaranteed
Newly Released January 2020
No Sales Tax In Most States

Got a Question? Call Us

(786) 209 0517

Description

The AGM Rattler TS25-384 and Rattler TS35-384 are the compact thermal imaging scopes developed for 24 hours operation under any weather and environmental conditions. Two objective lens options allow the customer to choose perfect unit for your needs where 25 mm lens designed for short range, while the 35 mm lens model will be great for medium range missions.
Thermal image scope has 384×288 thermal detector and 1024×768 OLED monitor, which provides clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc. The device is used as a thermal scope or handheld monocular. The scope is mainly applied to scenarios such as patrolling, and outdoor sports, etc.
Powered with two CR123 batteries the AGM Rattler TS-384 gives up to 4.5 hours of continuous operation time. An external 5V power bank (battery pack) can be easily connected via a USB connector for a significant increase of operating time. Onboard Wi-Fi module for live video streaming and video/images recording via application are also available.

Warning: California's Proposition 65

FEATURES

384 × 288 thermal resolution, high sensitivity detector
Image processing technology: Adaptive AGC, DDE, 3D DNR
1024 × 768 resolution 0.39-inch OLED display
8x digital zoom
Video recording and snapshot, built-in EMMC (16 GB)
Supports distance measurement
Adjustable color palettes
Wi-Fi data transmission
Waterproof, shockproof
Up to 4.5 hours continuous working
External power supply capability
Limited 3-year warranty

CHARACTERISTICS

Detector type: Vanadium Oxide Uncooled Focal Plane Arrays
Refresh rate: 50 Hz
Resolution: 384x288
FOV: 14.9° x 11.2°

DOWNLOADS

SPECIFICATIONS

Shock and vibration: 750 g/ms
Detector type: 17μm, Uncooled, 50Hz
Standby Mode: Yes
Resolution: 384x288
Detection Range: Max. 1235 m
Snapshot: Yes
Lens system: 35 mm; F/1.0
Optical magnification: 2.14x
Field of view (H × X): 10.0° x 8.0°
Digital zoom: 2x, 4x, 8x, PIP
Eye relief: 45 mm
Imaging palettes: Jungle, Recognition
Display: 0.39-inch, OLED, 1024 × 768
Storage: Built-in EMMC (16 GB)
Record Video: Yes
Battery Type: Two CR123
Wi-Fi: Yes
Battery Life (Operating): Up to 4.5 hr
External power supply: 5V USB
Operating Temperature Range: -20°C to +55°C (-4°F to +131°F)
Degree of Protection: IP67
Weight: 0.41 kg ( 0.91 lb)
Overall Dimensions: 187.2 × 62.5 × 59.2 mm (7.37 × 2.46 × 2.33 in)

Why Choose AGM Global Vision Thermal Imaging Scopes: Technologies and Features

AGM Global Vision thermal imaging scopes use the latest infrared imaging technology to reveal temperature variations and fluctuations that occur in both natural and man-made objects. They use that information to generate an image even in near to total darkness. With multi-coated, Germanium lenses and compact, sturdy housing, our sights are water, dust, and sand-proof for unmatched reliability in uncharted territories, rough terrain, and extreme weather conditions. Our thermal imaging scopes also offer:

A fully adjustable electronic fine reticle for precision missions
Professional-grade lens materials and ergonomic design
A digitally controlled boresight, which allows to change the position of your reticle without losing sight of the running center coordinates
A locking quick-release mount
Wireless remote control
Option to use either CR123A Lithium batteries or additional battery packs

Our thermal imaging scopes are developed using the science of black body radiation, which demonstrates that objects with a temperature above absolute zero must emit infrared radiation. Radiation levels increase or decrease in response to changes or variations in an object’s temperature; thermal photography, or thermography, works by detecting the level of radiation that an object emits and translating it into an image. AGM Global Vision superior thermal imaging scopes are made from high-grade construction materials that are lightweight, weather-resistant, and tough.

Our Thermal Imaging Scope Products

We offer a wide range of field-tested, Military-grade thermal imaging scopes. They feature:

One Shot Zero with Freeze Function
Digital boresight function
Variable gain control
5 Zeroing profiles
Powered by two CR123A Lithium batteries
Stadiametric rangefinder
High resolution 1024x768 display
Automatic or Manual (silent) Calibration

With precision top wheel focus and an ergonomic body, our thermal imaging scopes allow the exceptionally accurate positioning while maximizing user comfort.

The AGM Global Vision Guarantee: The Ideal Choice for Experts and Enthusiasts

All AGM Global Vision thermal imaging scopes are built to last, with a quality construction and host of feature that enable our customers to feel safe, adaptable, and fully in control during covert operations, territory exploration, routine enforcement, and everything in between. Our thermal imaging scopes are water and fog-resistant, and always created for the most demanding tactical professionals. AGM Global Vision customers know that our products offer superior quality and exceptional performance that’s low-maintenance and cost-effective.
