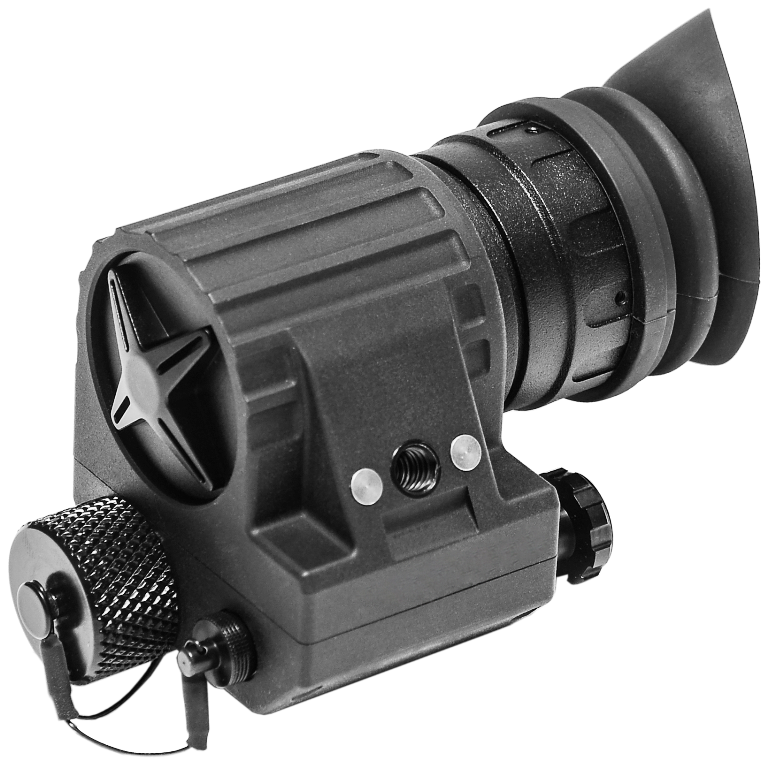

HMD-800-MOD is the modernized ultra-portable display unit that transmits and displays real-time video signal from any primary electro-optical device. It has been known and tested by various tactical teams throughout the world and is a perfect tool for covert operations.
HMD-800-MOD helps you observe the surroundings without exposing yourself. It can also be used with a remote control so a user can have control over the system from distance. In addition, with HMD-800-MOD two crew members can see through the same device at the same time.
KEY FEATURES
- Portable and Lightweight
- 800x600 Colour AMOLED Display
- Single Knob Operation
- Up to 10 Hours Battery Life
DOWNLOADS
|
HMD-800-MOD SPECIFICATIONS
|
|
Display Type
|
Full Size: 0.6-inch, AMOLED, Colour
|
|
Display Resolution
|
800x600
|
|
Display Rotation Range
|
-45° .. +45°
|
|
Input Video Signal
|
Auto-Detection. Analog: PAL and NTSC
|
|
Power Source
|
One (1) CR123 Battery
|
|
Flip-Up-Off Feature
|
Yes
|
|
Polarity-Independent Power Supply
|
Yes
|
|
Environmental Protection
|
Min. IP67
|
|
MIL-STD-810G Compliant
|
Yes
|
|
Nitrogen-Purged Housing
|
Yes
|
|
Battery Life
|
Up to 10 Hours
|
|
Dimensions
|
83x60x65mm
|
|
Weight
|
200 grams
|
|
Operating Temperature
|
-40°C .. +50°C
|
|
Warranty
|
7 Years, Limited
|
|
Export
|
Available Worldwide
|
STANDARD EQUIPMENT: WHAT’S IN THE BOX
- HMD-800-MOD Unit
- Rubber Eyecup (Installed on the device) + Spare
- Demist Shield
- Connection Cable
- Neck Cord
- Soft Carrying Pouch
- User Manual
- 7-Year Warranty with Activation Form
- Cleaning Kit (3-in-1 Multi-Pen + Soft Cleaning Cloth)
OPTIONAL EQUIPMENT
- Standard Non-Flip-Up Head Gear PHG-7 (Bayonet Type only)
- Advanced Helmet Harness HMH-1 for MICH / ACH Helmets
- Universal Multi-Voltage Battery Pack MVP-240
- USB Power Cable
- Universal Remote Control Unit TRC-120 (Comes with connection cable)
