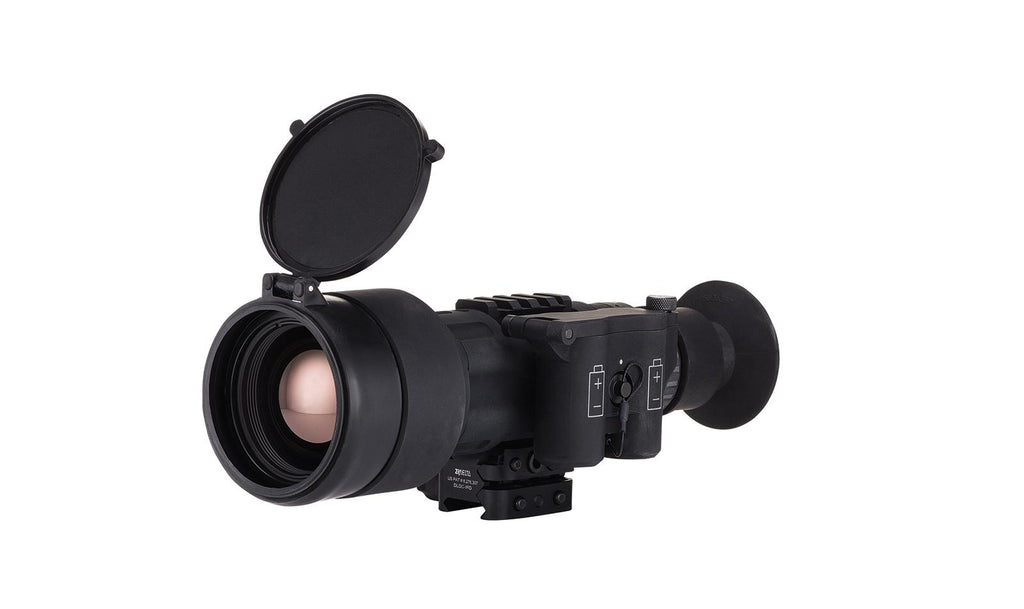

The Trijicon REAP-IR® mini thermal scope is a small, light, powerful thermal scope that lets you engage targets in any light. Choose from multiple magnification levels and field of view to fit your specific needs. The REAP-IR optimizes the S.W.A.P. mindset (Size, Weight and Power) with its small packaging combined with lightweight, rugged features.
Specifications:
- Length x Width x Height: 7.51 in x 3.42 in x 2.96 in(190.75mm x 86.87mm x 75.18mm)
- Weight: 32 oz. (907.18g)
- Magnification: 4.5x
- Day Reticle Color: Black / White Adaptive
- Night Reticle Color: Black / White Adaptive
- Illumination Source: LED
- Power Source: 2 CR123 Batteries
- Battery Life: Aprox. 2 hours per battery
- Eye Relief: 1.06 in. (26.92mm)
- Field of View (degrees): 7°
- Mount: Mini D-LOC
- Diopter Range: -6 / +2
- Finish: Matte Black
- Operating Temperature: -40F to +131F (-40c to 55c)
- Sensor Type: Uncooled Vox (Vanadium Oxide)
- Digital Zoom: 8X
- Sensor Resolution: 640x480
- Sensor Pixel Pitch: 12 µm
- Focal Length: 60mm
- Frame Rate: 30 Hz / 60 Hz
- Video Output: Analog RS-170 (with Optional Cable)
